Can you buy the ANYmal?
Available to buy. It is deployed at 1 site.
What is the ANYmal?

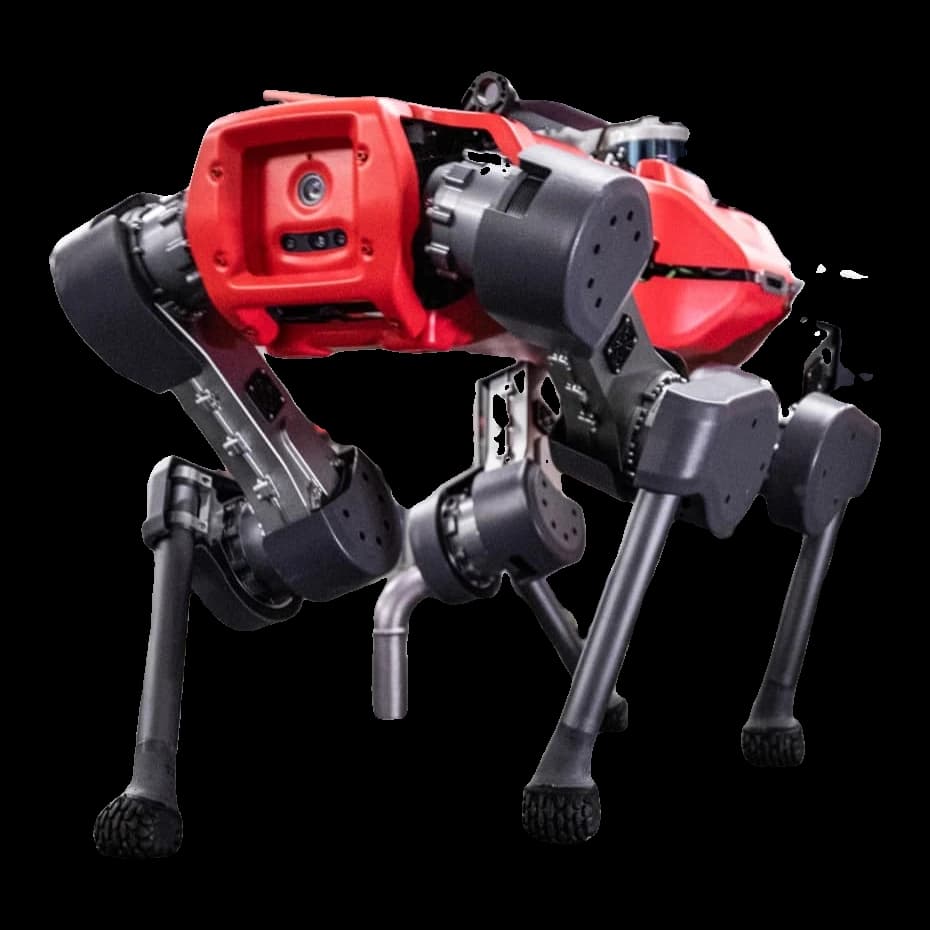

ANYmal is ANYbotics' quadruped robot for autonomous inspection of industrial facilities, walking at up to 0.75 meters per second, carrying up to 10 kilograms of additional sensor payload, and running for roughly 2 to 4 hours before autonomously docking to recharge. It is IP67 rated and carries LiDAR, depth cameras, and thermal and acoustic sensors to inspect gauges, valves, and equipment in plants across the chemical, energy, and mining industries. The explosion-proof ANYmal X variant has been deployed at BASF's Ludwigshafen site in Germany to inspect Ex-zone equipment in the Steamcracker and Oxo Plant.
Full specifications
ANYmal vs similar robots
| Spec | ANYmal | Vision 60 | Xiaomi CyberDog 2 | Deep Robotics X30 |
|---|---|---|---|---|
| Weight (kg) | NO DATA | 51 kg | 8.9 kg | 56 kg |
| Battery (Wh) | NO DATA | NO DATA | NO DATA | NO DATA |
| Payload (kg) | 10 kg | 10 kg | NO DATA | NO DATA |
| Max speed (m/s) | 0.75 m/s | 2.4 m/s | 1.6 m/s | 4 m/s |
| Runtime (min) | 120 min | 189 min | 90 min | 240 min |
| Max slope (deg) | NO DATA | NO DATA | NO DATA | NO DATA |
| IP rating | NO DATA | NO DATA | NO DATA | NO DATA |
Where it is deployed
Frequently asked
What is the ANYmal's payload?
The ANYmal has a payload of 10 kg.
How fast is the ANYmal?
The ANYmal moves at 0.75 m/s.
How long does the ANYmal's battery last?
The ANYmal runs for 120 min.
